Timeless Design

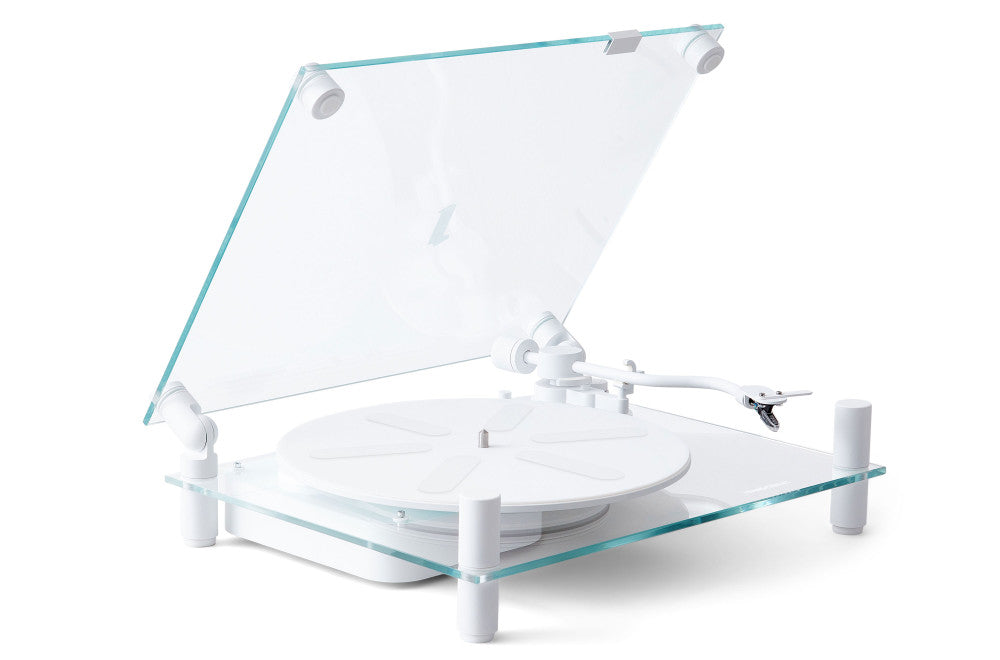

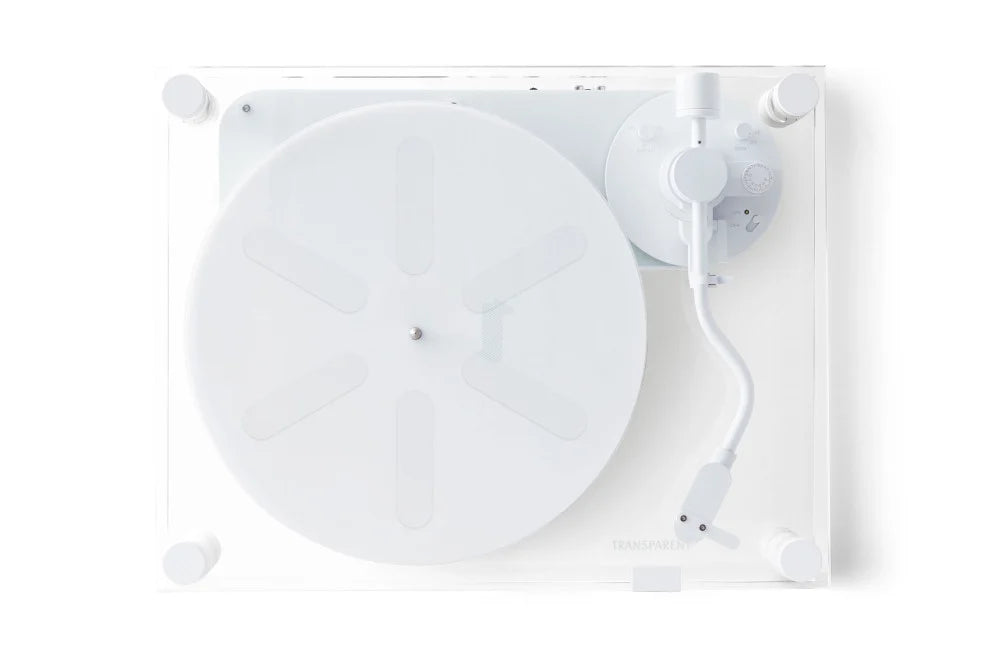

The Transparent Turntable is a reinvention of a classic vinyl record player, designed for a modern home and an ever evolving technology. The Transparent Turntable is meticulously crafted out of aluminium and tempered glass. It is a belt driven system with a built in phono stage, and a pre-mounted cartridge from Danish Ortofon.
Modular
Just like all Transparent products the TT has a completely modular design. With the future in mind, it is made for flexibility, upgradability and repairability.
Transparent Sound
The Transparent Turntable must be connected to a sound system to play music. It works excellent with a speaker from Transparent, but can also be used with other brands. It plays with effortless clarity and precision, and offers playback either with cable or without, using Bluetooth.
Technical Specifications
Nominal speeds: 33 ⅓ and 45 RPM
Speed variance: 33: ±0.70% 45: ±0.60%
Wow and flutter: 33: ±0.25% 45: ±0.25%
Signal to noise: ≥ 70dB at 1kHz, 0dB A-weighted
Frequency range: 20-25.000Hz +3 / -3
Stylus tip radius: r/R 8/18 µm
Tracking force range: 1.5-2.0 g (15-20 mN)
Tracking force, recommended: 1.75 g (17.5 mN)
Tracking angle: 20°
Replacement stylus unit: Ortofon Stylus 5E
Effective tonearm mass: 13.5g
Effective tonearm length: 220mm / 8.7in
Overhang: 19.5mm / 0.77in
Max power consumption: 15W
Dimensions (W x H x D): 410 x 125 x 320 mm / 16 x 5 x 13 in
Weight: 6,5kg / 14lb
Dimensions packaging (W x H x D): 580 x 240 x 460 mm / 23 x 10 x 19 in
Weight incl. packaging: 7,0kg / 15lb
Rated input voltage: 100~240Vac, @ 50/60Hz.
Bluetooth version: 5.0
Normal or True Wireless (stereo) pairing
3.5 mm port for digital optical and analogue signals
µUSB port for 5V power
RX and TX mode (switch)
Chip: Qualcomm CSR8670C
Codec: aptX LL / SBC / MP3 / AAC
Low Latency: <40ms
Gold-plated contacts for perfect signal transmission
